Commands and responses
Commands by model
The Comandi tab shows only the commands supported by the model of the device. If the model is not recognised, no command is shown.

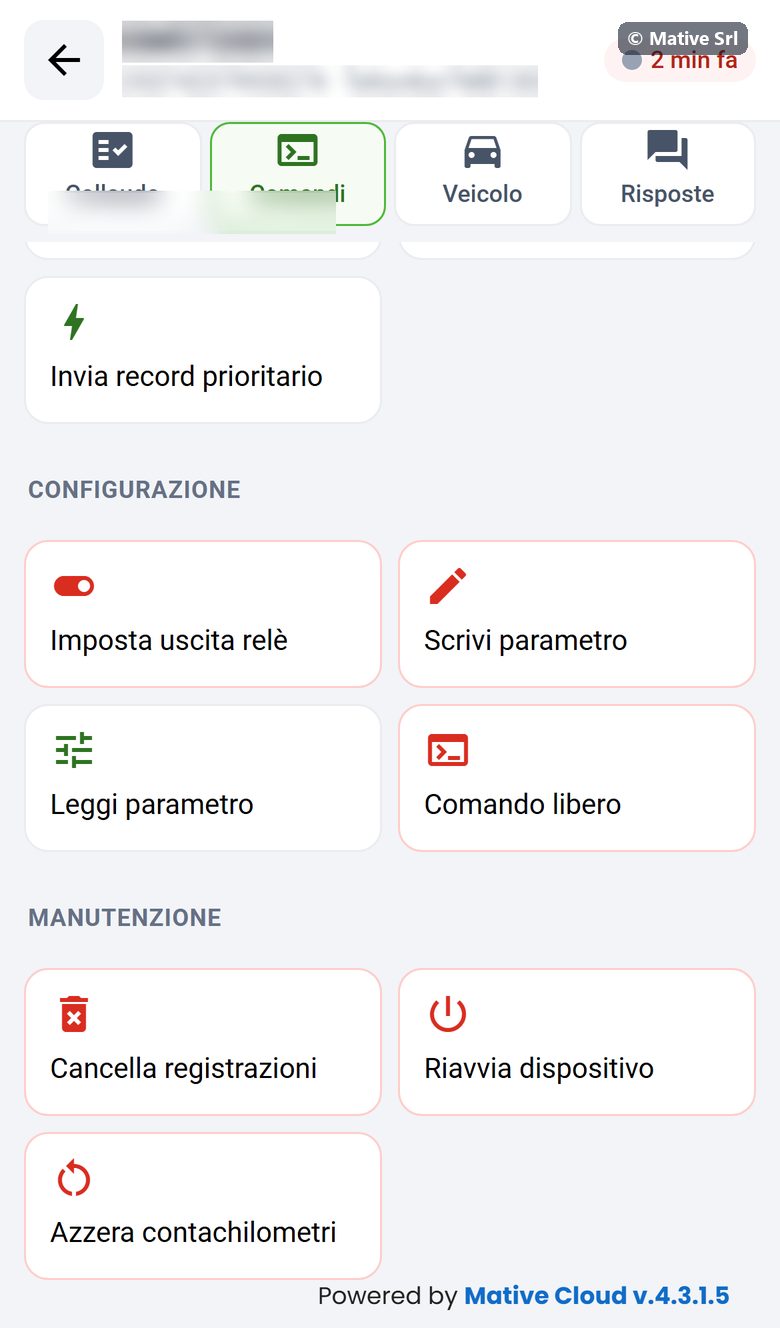

Commands are grouped:
| Group | Examples |
|---|---|
| Blocco motore | Lock and unlock the engine (relay) |
| Diagnostica | Device info, position link, inputs and outputs, send a priority record |
| Configurazione | Set relay output, write and read a parameter, free command |
| Manutenzione | Delete records, restart the device, reset the odometer |
| Diagnostica CAN, Comandi CAN (veicolo) | Only on devices connected through the CAN bus |

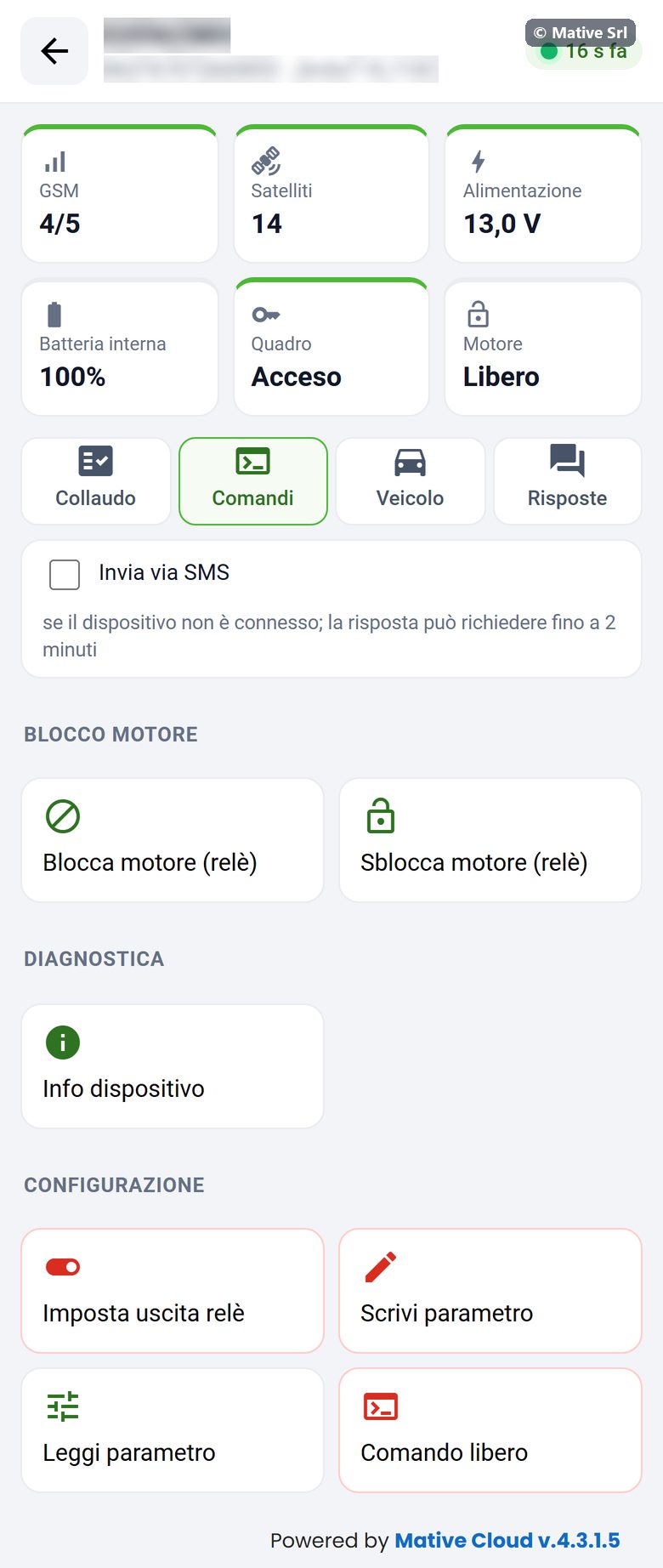

Teltonika devices have all the diagnostic and maintenance commands. JimiIoT devices have fewer: device info, parameters, relay, engine lock and unlock, free command.

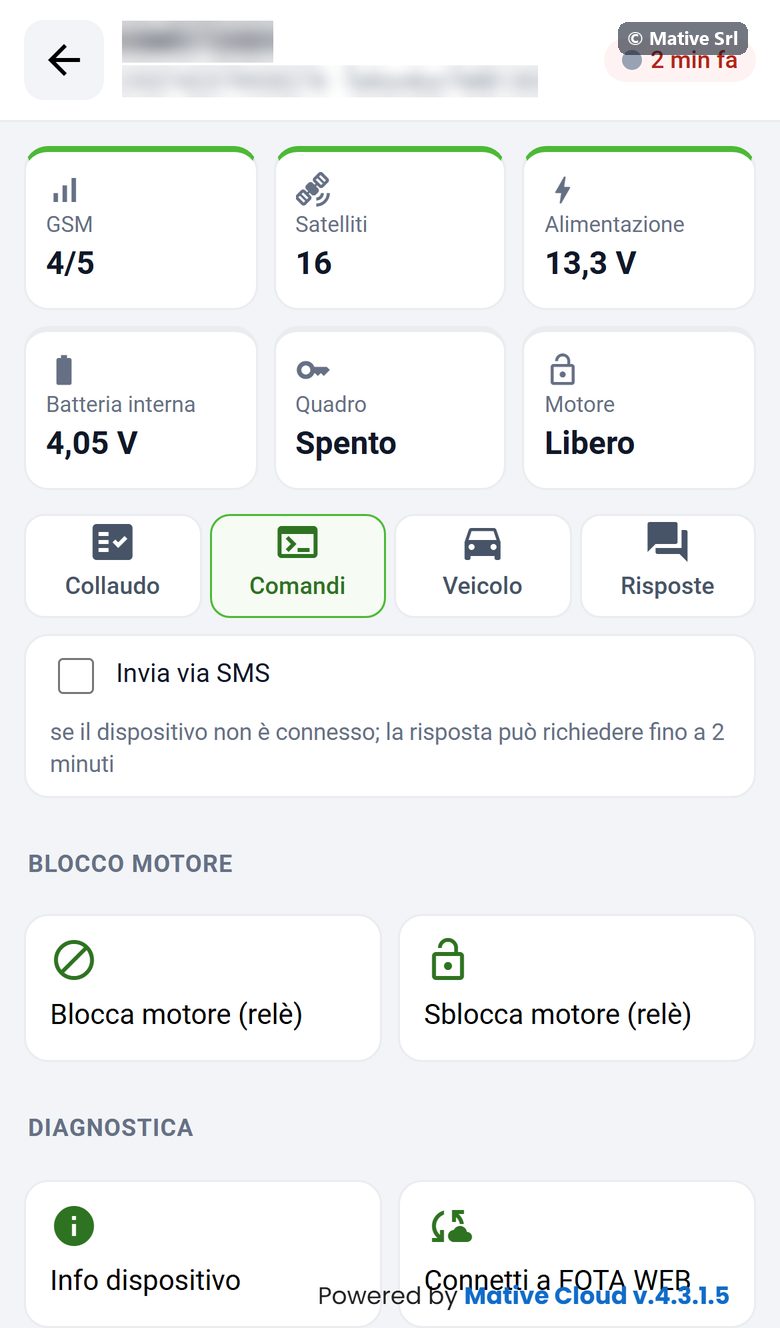

Invia via SMS (send by SMS), at the top of the tab, sends the command by SMS instead of through the data connection. Use it when the device is not connected; the answer can take up to 2 minutes.
Commands with parameters

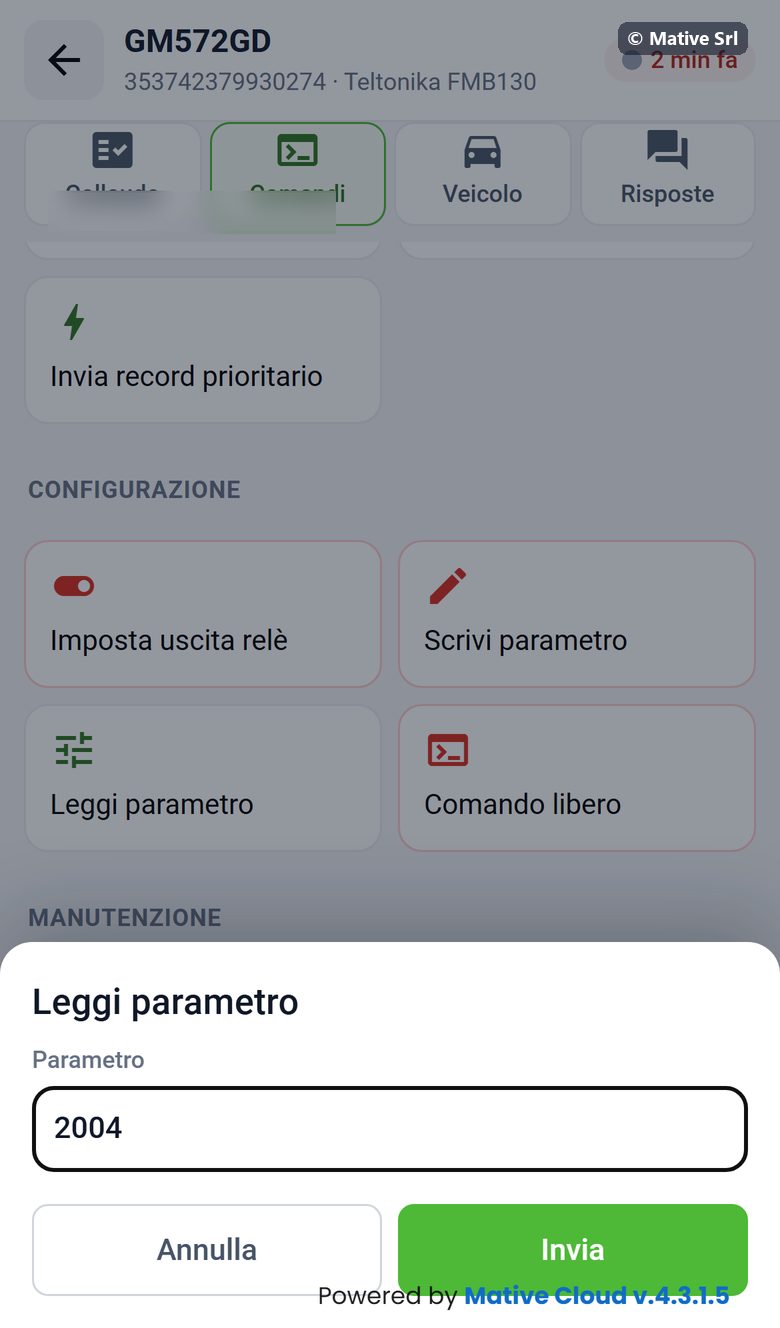

Some commands ask for values, for example Leggi parametro (read parameter) asks for the parameter number. Fill in the fields and press Invia (send), or Annulla (cancel).
Dangerous commands

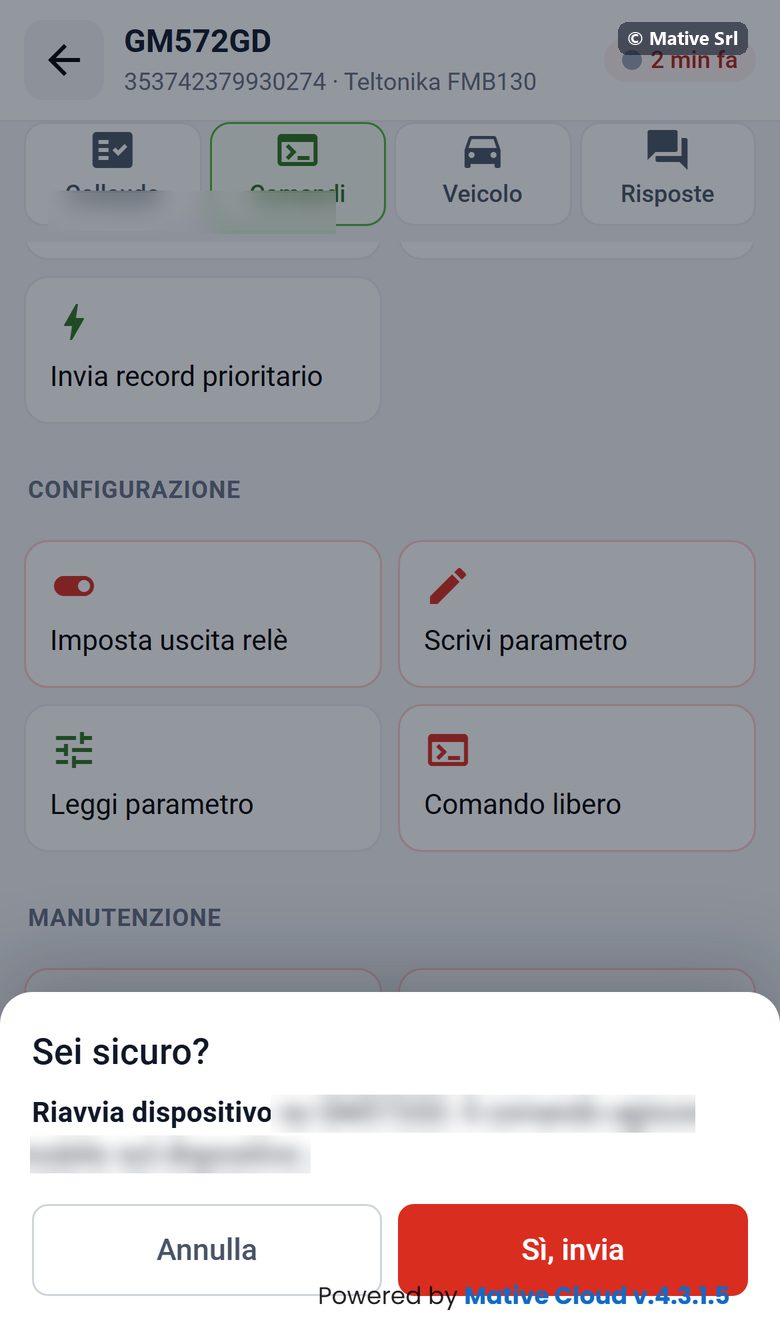

The commands of Configurazione and Manutenzione change the device or delete data. They are shown in red and always ask Sei sicuro? (are you sure?), with the name of the command and the vehicle. Sì, invia sends it, Annulla cancels.
Responses
After a command, the page waits for the device's answer:
| Result | Meaning |
|---|---|
| Risposta ricevuta (response received) | The device answered after the command. For engine lock and unlock, only an answer of the right type counts. |
| Nessuna risposta entro 20 s | No answer within 20 seconds through the data connection |
| Nessuna risposta entro 120 s | No answer within 2 minutes by SMS |
Only one command at a time waits for an answer on each device: a new command replaces the previous one.
Response is not execution
An answer means that the device has received the command, not that it has already carried it out. For the engine lock, the device may answer that the lock is queued: the lock is applied only when the engine is off. The real state is always the one shown in the Motore box of the live data.

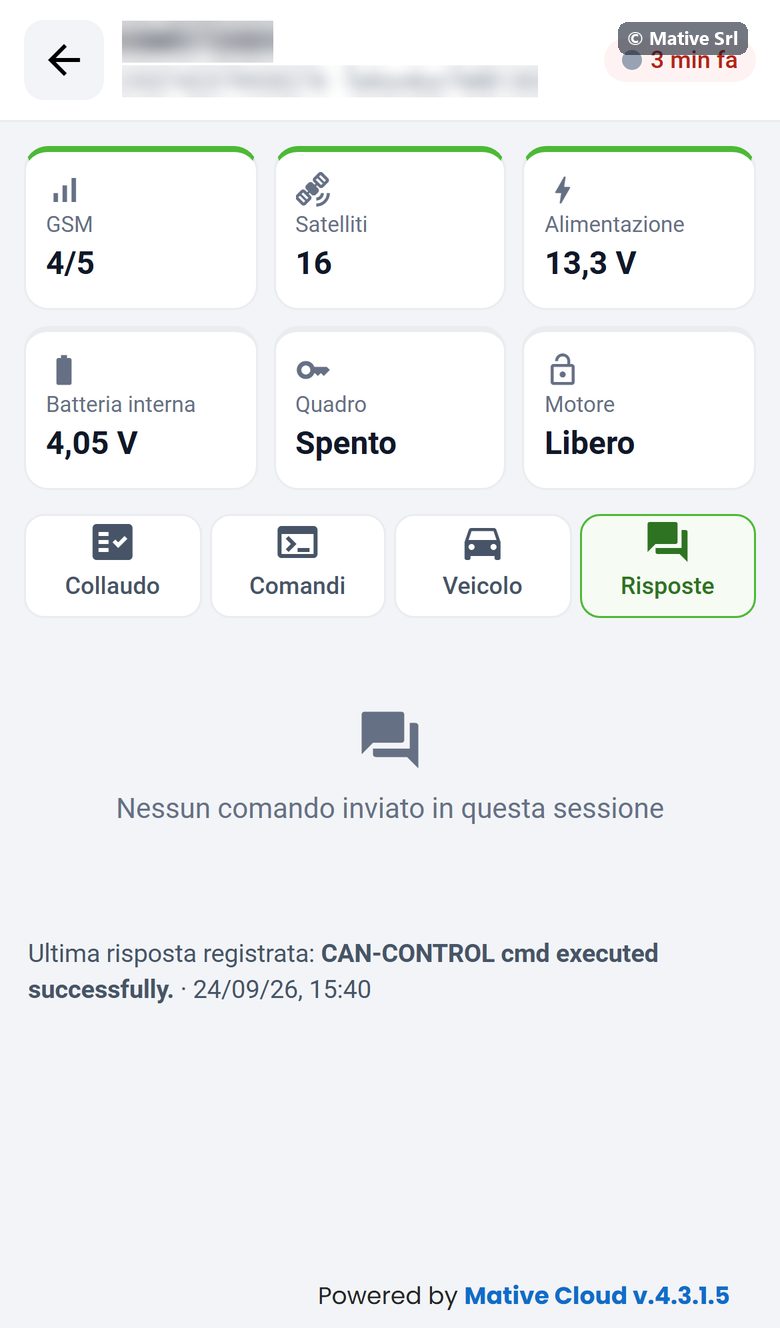

Responses tab
Risposte lists the commands sent in this session with the text sent and the outcome. Before any command it says Nessun comando inviato in questa sessione (no command sent in this session) and shows the last response recorded by the device.
